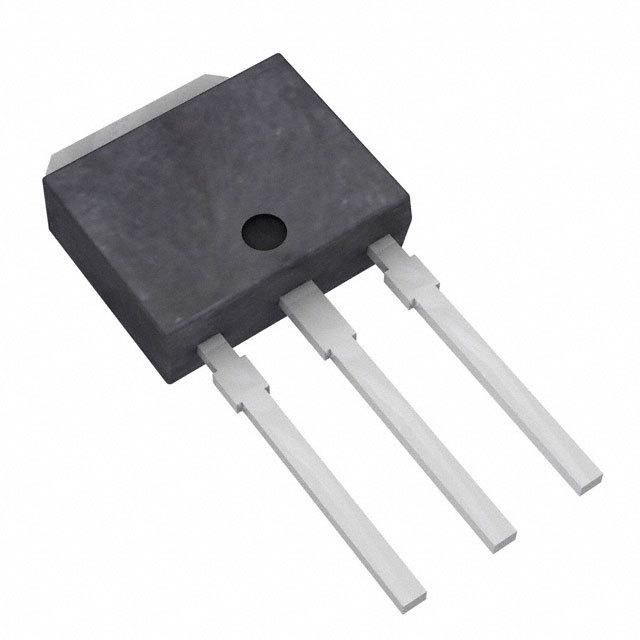

  • SFT1443-H

  • Manufacturer : ON Semiconductor
    Packaging : Bulk
    Part Status : Obsolete
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 100V
    Current - Continuous Drain (Id) @ 25°C : 9A (Ta)
    Drive Voltage (Max Rds On, Min Rds On) : 4V, 10V
    Rds On (Max) @ Id, Vgs : 225 mOhm @ 3A, 10V
    Gate Charge (Qg) (Max) @ Vgs : 9.8nC @ 10V
    Vgs (Max) : ±20V
    Input Capacitance (Ciss) (Max) @ Vds : 490pF @ 20V
    Power Dissipation (Max) : 1W (Ta), 19W (Tc)
    Operating Temperature : 150°C (TJ)
    Mounting Type : Through Hole
    Supplier Device Package : TP
    Package / Case : TO-251-3 Short Leads, IPak, TO-251AA

極速報價

型號
 品牌 封裝 批號 查看
MV7843 ON T-1 New 詳細
HGTP10N120BN ON TO-220-3 New 詳細
CAT811TTBI-GT3 ON SOT-143 New 詳細
BZX85C11_T50A ON DO-204AL (DO-41) New 詳細
NC7SZ11P6X ON SC-88 (SC-70-6) New 詳細
MOC215R2M ON 8-SOIC New 詳細
NTD4909N-35G ON I-PAK New 詳細
NCV8605MN33T2G ON 6-DFN (3x3) New 詳細
KA7812ERTF ON D-PAK (TO-252) New 詳細
NB7V33MMNGEVB ON New 詳細
LB1861M-W-AH ON New 詳細
FAN7385MX ON 14-SOP New 詳細
MV8331 ON T-1 3/4 New 詳細
NLSF595DTR2G ON 16-TSSOP New 詳細
ISL9V3040P3 ON TO-220-3 New 詳細
MPSA10 ON TO-92-3 New 詳細
ISL9R460PF2 ON TO-220F-2L New 詳細
CD4046BCM ON 16-SOIC New 詳細
FAN2511S27X ON SOT-23-5 New 詳細
FOD814AS ON 4-SMD New 詳細
