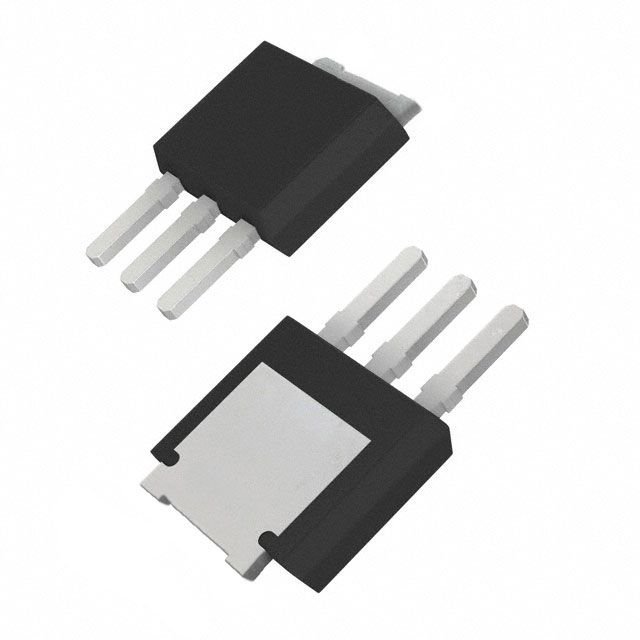

  • NTD4909N-35G

  • Manufacturer : ON Semiconductor
    Packaging : Tube
    Part Status : Obsolete
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 30V
    Current - Continuous Drain (Id) @ 25°C : 8.8A (Ta), 41A (Tc)
    Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
    Rds On (Max) @ Id, Vgs : 8 mOhm @ 30A, 10V
    Vgs(th) (Max) @ Id : 2.2V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 17.5nC @ 10V
    Vgs (Max) : ±20V
    Input Capacitance (Ciss) (Max) @ Vds : 1314pF @ 15V
    Power Dissipation (Max) : 1.37W (Ta), 29.4W (Tc)
    Operating Temperature : -55°C ~ 175°C (TJ)
    Mounting Type : Through Hole
    Supplier Device Package : I-PAK
    Package / Case : TO-251-3 Stub Leads, IPak
