  • FDA15N65

  • Manufacturer : ON Semiconductor
    Packaging : Tube
    Series : UniFET?
    Part Status : Obsolete
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 650V
    Current - Continuous Drain (Id) @ 25°C : 16A (Tc)
    Drive Voltage (Max Rds On, Min Rds On) : 10V
    Rds On (Max) @ Id, Vgs : 440 mOhm @ 8A, 10V
    Vgs(th) (Max) @ Id : 5V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 63nC @ 10V
    Vgs (Max) : ±30V
    Input Capacitance (Ciss) (Max) @ Vds : 3095pF @ 25V
    Power Dissipation (Max) : 260W (Tc)
    Operating Temperature : -55°C ~ 150°C (TJ)
    Mounting Type : Through Hole
    Supplier Device Package : TO-3PN

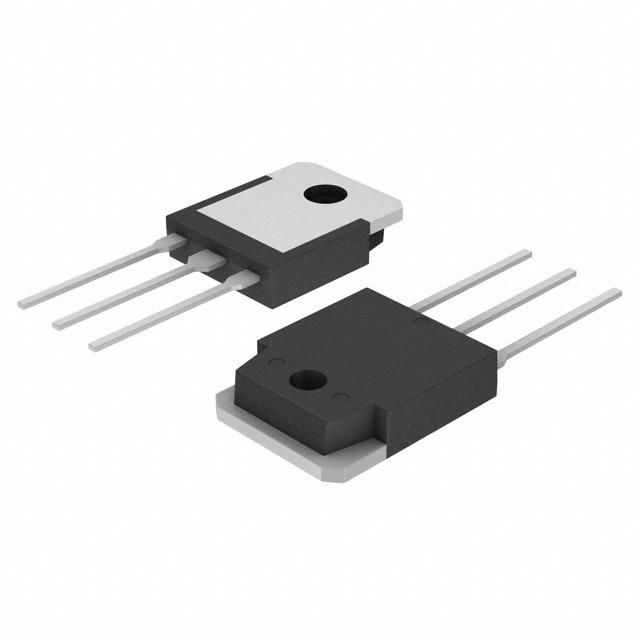

    Package / Case : TO-3P-3, SC-65-3

極速報價

型號
 品牌 封裝 批號 查看
MOC3010TVM ON 6-DIP New 詳細
MM74HCT540MTCX ON 20-TSSOP New 詳細
LB1930MC-BH ON 10-SOIC New 詳細
CS5174ED8 ON 8-SOIC New 詳細
MC33269DTRK-3.3G ON DPAK New 詳細
2SB1302S-TD-E ON PCP New 詳細
LC75055PE-6158-H ON 100-PQFP/QIP (20x14) New 詳細
FCH76N60NF ON TO-247 New 詳細
LM317MBSTT3 ON SOT-223 New 詳細
FDMS0309AS_SN00347 ON 8-PQFN (5x6) New 詳細
FPF2182 ON 6-WLCSP (1.0x1.5) New 詳細
74AC169SJX ON 16-SOP New 詳細
DM74ALS1032AMX ON 14-SOIC New 詳細
1N5820G ON DO-201AD New 詳細
LC75884WHS-TLM-E ON 80-SQFP (12x12) New 詳細
74LCX245WMX ON 20-SOIC New 詳細
74AC169PC ON 16-PDIP New 詳細
FDB039N06 ON TO-263 New 詳細
MM74C906MX ON 14-SOIC New 詳細
NTD4855N-1G ON I-PAK New 詳細
