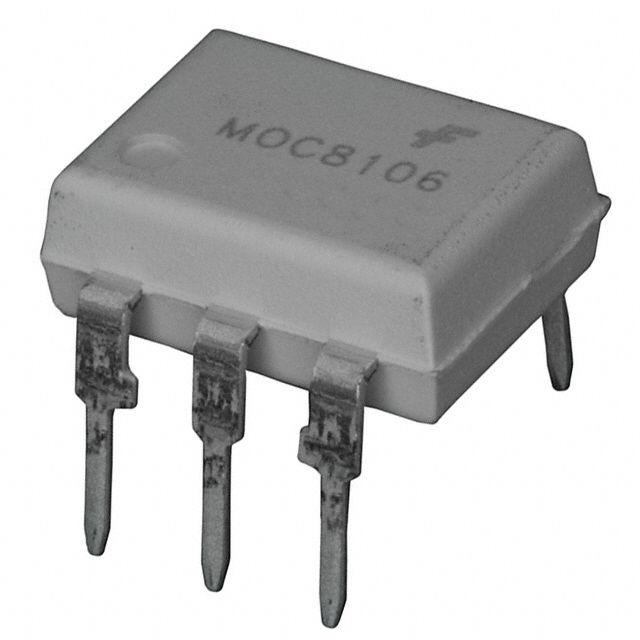

  • MOC8106M

  • Manufacturer : ON Semiconductor
    Packaging : Tube
    Part Status : Active
    Number of Channels : 1
    Voltage - Isolation : 4170Vrms
    Current Transfer Ratio (Min) : 50% @ 10mA
    Current Transfer Ratio (Max) : 150% @ 10mA
    Turn On / Turn Off Time (Typ) : 2μs, 3μs
    Rise / Fall Time (Typ) : 4μs, 3.5μs (Max)
    Input Type : DC
    Output Type : Transistor
    Voltage - Output (Max) : 70V
    Current - Output / Channel : 50mA
    Voltage - Forward (Vf) (Typ) : 1.15V
    Current - DC Forward (If) (Max) : 60mA
    Vce Saturation (Max) : 400mV
    Operating Temperature : -40°C ~ 100°C
    Mounting Type : Through Hole
    Package / Case : 6-DIP (0.300", 7.62mm)
    Supplier Device Package : 6-DIP

極速報價

型號
 品牌 封裝 批號 查看
74ACT74SC ON New 詳細
CNY28 ON New 詳細
74OL6001300 ON 6-DIP New 詳細
NZF220TT1 ON New 詳細
BC557_D11Z ON TO-92-3 New 詳細
UC3842AN ON 8-PDIP New 詳細
H11AA1M ON 6-DIP New 詳細
FDB86135 ON D2PAK (TO-263AB) New 詳細
NC7SZ66P5 ON SC-70-5 New 詳細
MM74HC165SJX ON 16-SOP New 詳細
CAT24C04WI-GT3JN ON 8-SOIC New 詳細
HGTG10N120BND ON TO-247 New 詳細
STK672-640AN-E ON 19-SIP New 詳細
4N32SR2M ON 6-SMD New 詳細
LB11620GP-TE-L-H ON 24-VCT (3.5x3.5) New 詳細
FDD5N50FTM-WS ON D-Pak New 詳細
MJ11028G ON TO-3 New 詳細
BCW61AMTF ON SOT-23 New 詳細
BZX79C8V2-T50A ON DO-35 New 詳細
H11B815300 ON 4-DIP New 詳細
