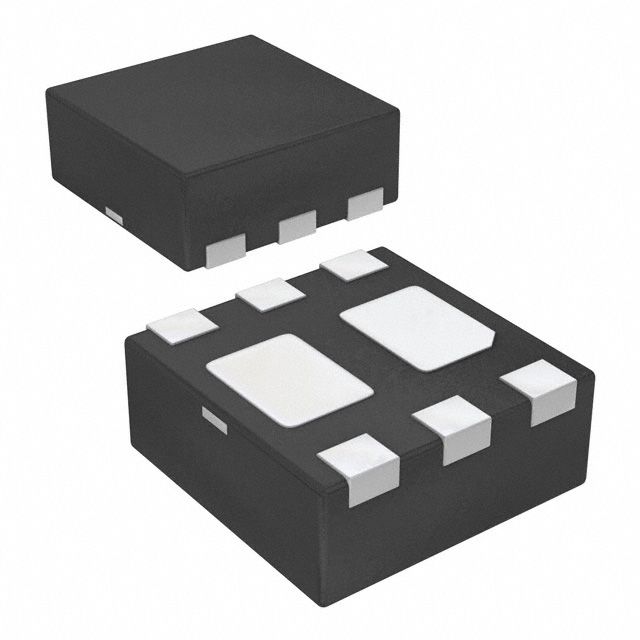

  • FDFM2N111

  • Manufacturer : ON Semiconductor
    Packaging : Cut Tape (CT)
    Alternate Packaging
    Series : PowerTrench?
    Part Status : Discontinued at Digi-Key
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 20V
    Current - Continuous Drain (Id) @ 25°C : 4A (Ta)
    Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
    Rds On (Max) @ Id, Vgs : 100 mOhm @ 4A, 4.5V
    Vgs(th) (Max) @ Id : 1.5V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 3.8nC @ 4.5V
    Vgs (Max) : ±12V
    Input Capacitance (Ciss) (Max) @ Vds : 273pF @ 10V
    FET Feature : Schottky Diode (Isolated)
    Power Dissipation (Max) : 1.7W (Ta)
    Operating Temperature : -55°C ~ 150°C (TJ)
    Mounting Type : Surface Mount
    Supplier Device Package : MicroFET 3x3mm
    Package / Case : 6-WDFN Exposed Pad

極速報價

型號
 品牌 封裝 批號 查看
DM74LS27N ON 14-PDIP New 詳細
NCV7441D20G ON 14-SOIC New 詳細
MM74HC139N ON 16-PDIP New 詳細
LA72912VL-TLM-H ON New 詳細
FM27C512Q150 ON 28-CDIP New 詳細
QTLP9133GR ON Subminiature T-3/4 New 詳細
FODM121ER2V ON 4-SMD New 詳細
H11A13S ON 6-SMD New 詳細
FMS6690MTC20X ON 20-TSSOP New 詳細
NCP5252GEVB ON New 詳細
NCP114AMX135TCG ON 4-UDFN (1.0x1.0) New 詳細
MCR12LD ON TO-220AB New 詳細
MC74VHC259MG ON 16-SOEIAJ New 詳細
TIL1133S ON 6-SMD New 詳細
DM7400N ON 14-PDIP New 詳細
1SMB5914BT3G ON SMB New 詳細
1N914 ON DO-35 New 詳細
ES3D ON SMC (DO-214AB) New 詳細
CAT810TTBI-GT3 ON SOT-23-3 New 詳細
FODM124 ON 4-SMD New 詳細
