  • FGH40T120SQDNL4

  • Manufacturer : ON Semiconductor
    Part Status : Active
    IGBT Type : Trench Field Stop
    Voltage - Collector Emitter Breakdown (Max) : 1200V
    Current - Collector (Ic) (Max) : 160A
    Current - Collector Pulsed (Icm) : 160A
    Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 40A
    Power - Max : 454W
    Switching Energy : 1.4mJ (on), 1.1mJ (off)
    Input Type : Standard
    Gate Charge : 221nC
    Td (on/off) @ 25°C : 46ns/220ns
    Test Condition : 600V, 40A, 10 Ohm, 15V
    Reverse Recovery Time (trr) : 166ns
    Operating Temperature : -55°C ~ 175°C (TJ)
    Mounting Type : Through Hole

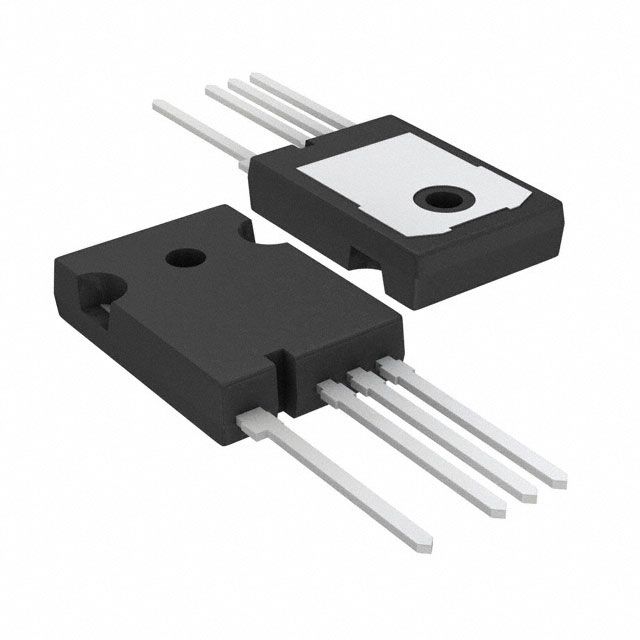

    Package / Case : TO-247-4
    Supplier Device Package : TO-247-4L
