羅斌森

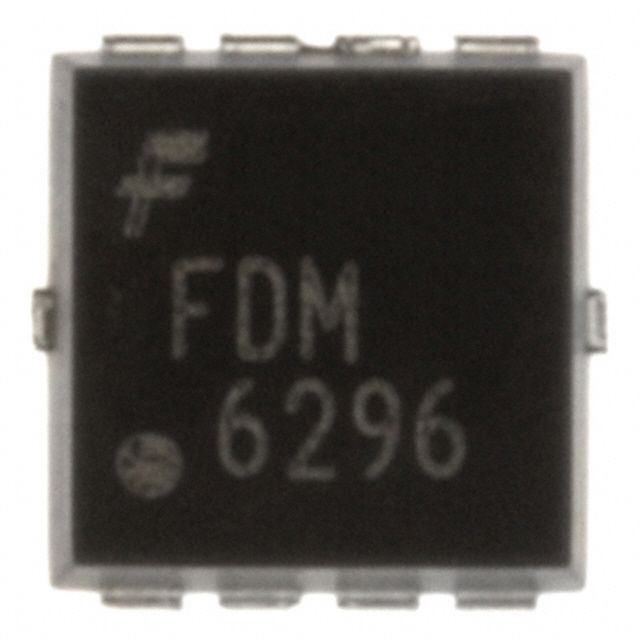

  • FDM6296

  • Manufacturer : ON Semiconductor
    Packaging : Tape & Reel (TR)
    Series : PowerTrench?
    Part Status : Obsolete
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 30V
    Current - Continuous Drain (Id) @ 25°C : 11.5A (Ta)
    Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
    Rds On (Max) @ Id, Vgs : 10.5 mOhm @ 11.5A, 10V
    Vgs(th) (Max) @ Id : 3V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 17nC @ 5V
    Vgs (Max) : ±20V
    Input Capacitance (Ciss) (Max) @ Vds : 2005pF @ 15V
    Power Dissipation (Max) : 2.1W (Ta)
    Operating Temperature : -55°C ~ 150°C (TJ)
    Mounting Type : Surface Mount
    Supplier Device Package : 8-Power33 (3x3)
    Package / Case : 8-PowerVDFN

極速報價

型號
 品牌 封裝 批號 查看
4N35FVM ON 6-SMD New 詳細
MC74HC1G00DFT2G ON SC-88A (SC-70-5/SOT-353) New 詳細
FODM3053V ON 4-SMD New 詳細
BC307B ON TO-92-3 New 詳細
MC33171DG ON 8-SOIC New 詳細
FSUSB242UCX ON 9-WLCSP (1.2x1.2) New 詳細
1SMB60CAT3 ON SMB New 詳細
MAN73A ON New 詳細
MAX809MTRG ON SOT-23-3 (TO-236) New 詳細
FDD6632 ON D-PAK (TO-252) New 詳細
NTK3134NT1H ON SOT-723 New 詳細
NCP43080DMNTWG ON 8-DFN (4x4) New 詳細
RD0106T-H ON TP New 詳細
MM74HC4316WM ON 16-SOIC New 詳細
NCP367DPMUECTBG ON 8-DFN (2x2.2) New 詳細
FAN23SV56MPX ON 34-PQFN (5.5x5) New 詳細
KSD471AYBU ON TO-92-3 New 詳細
LA0151CS-TLM-E ON 4-ODCSP (1.01x1.01) New 詳細
NCV8160AMX330TBG ON 4-XDFN (1x1) New 詳細
MMSZ2V4ET1 ON SOD-123 New 詳細
