羅斌森

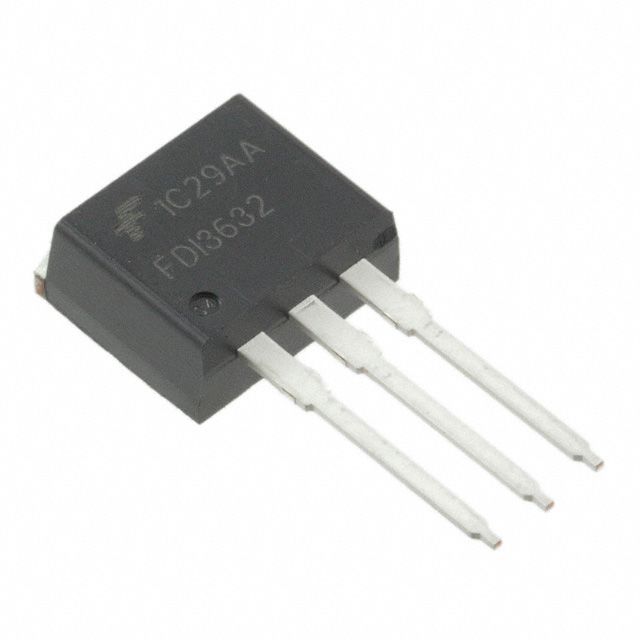

  • FDI3632

  • Manufacturer : ON Semiconductor
    Packaging : Tube
    Series : PowerTrench?
    Part Status : Obsolete
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 100V
    Current - Continuous Drain (Id) @ 25°C : 12A (Ta), 80A (Tc)
    Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
    Rds On (Max) @ Id, Vgs : 9 mOhm @ 80A, 10V
    Vgs(th) (Max) @ Id : 4V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 110nC @ 10V
    Vgs (Max) : ±20V
    Input Capacitance (Ciss) (Max) @ Vds : 6000pF @ 25V
    Power Dissipation (Max) : 310W (Tc)
    Operating Temperature : -55°C ~ 175°C (TJ)
    Mounting Type : Through Hole
    Supplier Device Package : I2PAK (TO-262)
    Package / Case : TO-262-3 Long Leads, I2Pak, TO-262AA
