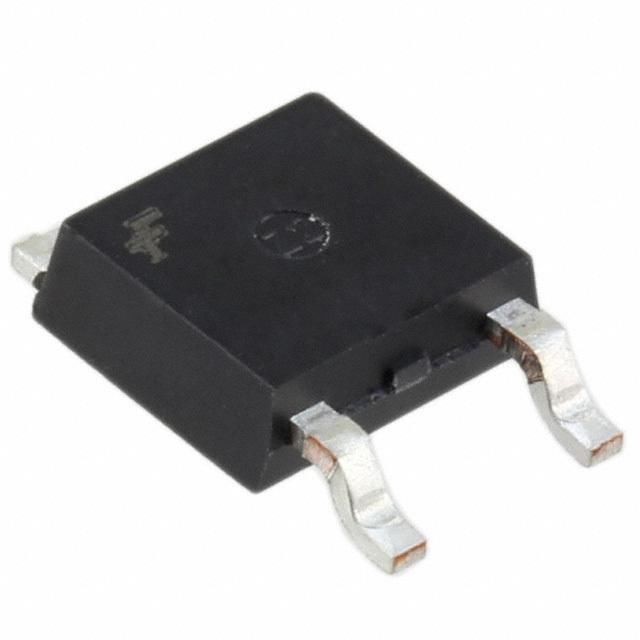

  • FDD1600N10ALZ

  • Manufacturer : ON Semiconductor
    Packaging : Cut Tape (CT)
    Alternate Packaging
    Series : PowerTrench?
    Part Status : Active
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 100V
    Current - Continuous Drain (Id) @ 25°C : 6.8A (Tc)
    Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
    Rds On (Max) @ Id, Vgs : 160 mOhm @ 3.4A, 10V
    Vgs(th) (Max) @ Id : 2.8V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 3.61nC @ 10V
    Vgs (Max) : ±20V
    Input Capacitance (Ciss) (Max) @ Vds : 225pF @ 50V
    Power Dissipation (Max) : 14.9W (Tc)
    Operating Temperature : -55°C ~ 150°C (TJ)
    Mounting Type : Surface Mount
    Supplier Device Package : DPAK
    Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
